6 Meter Long Plastic Mixer Screw & Assembly Parts 3D Scanned - Reverse Engineered.

Updated: Apr 28

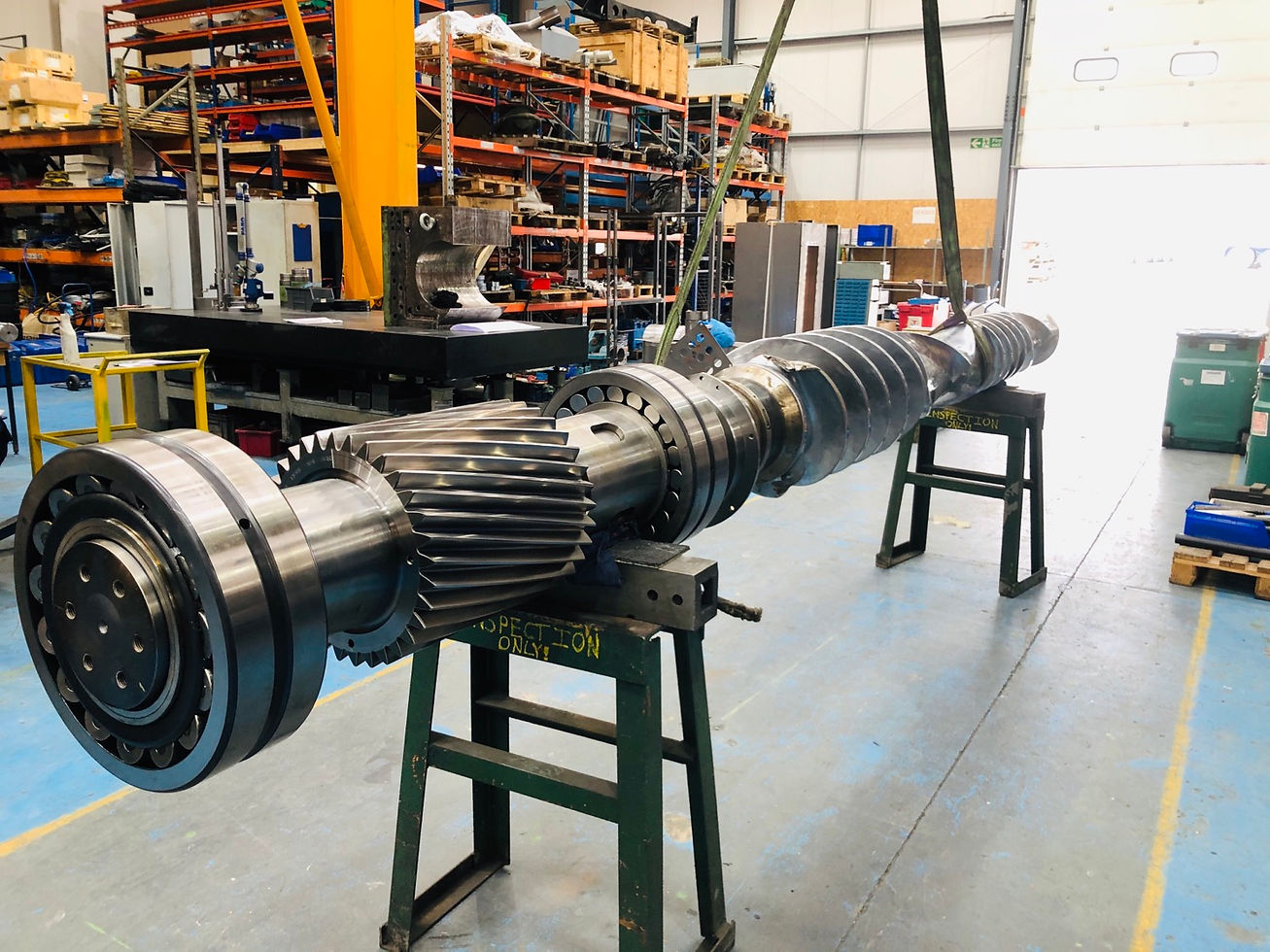

BMS reverse engineered and 3D scanned two 6 meter long industrial plastic mixer screws & 19 associated assembly parts for emergency repair works last Saturday.


13 hours of nonstop 3D Scanning with the Faro Arm was a great test of endurance for both the arm and the operators.

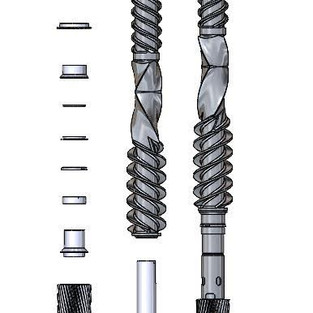

All scans were output in native SolidWorks for emergency downstream repairs and reproduction…


The parts had been Air Freighted from the middle east to Manchester for specialist emergency repair. Apparently these parts are some 25 years old, drawings & CAD files were not available from the original manufactures...
