3D Scanning, Reverse Engineering

From small micro components to civil engineering surveys. BMS provide rapid 3D Scanning, Reverse Engineering, Digitization, Scan to CAD services and work around the clock to suit customers needs.



We can output most format including native SolidWorks, step, iges, BIM Revit, .dxf .stl. dwg.

plastic mixing screw reverse engineering 3d scanning faro arm creaform 6meters long gears

3D Scanning of Parts, Components, Vehicles

We 3D Laser Scan vehicles, cars boats, electrical parts, industrial components, down to 30 microns using the latest Faro Arm Metrology Grade scanners and Creaform type Blue Light Hand held Scanners.

Please send images and required output for an instant quotation.

WhatsApp 07970533383


Civil Engineering Surveys

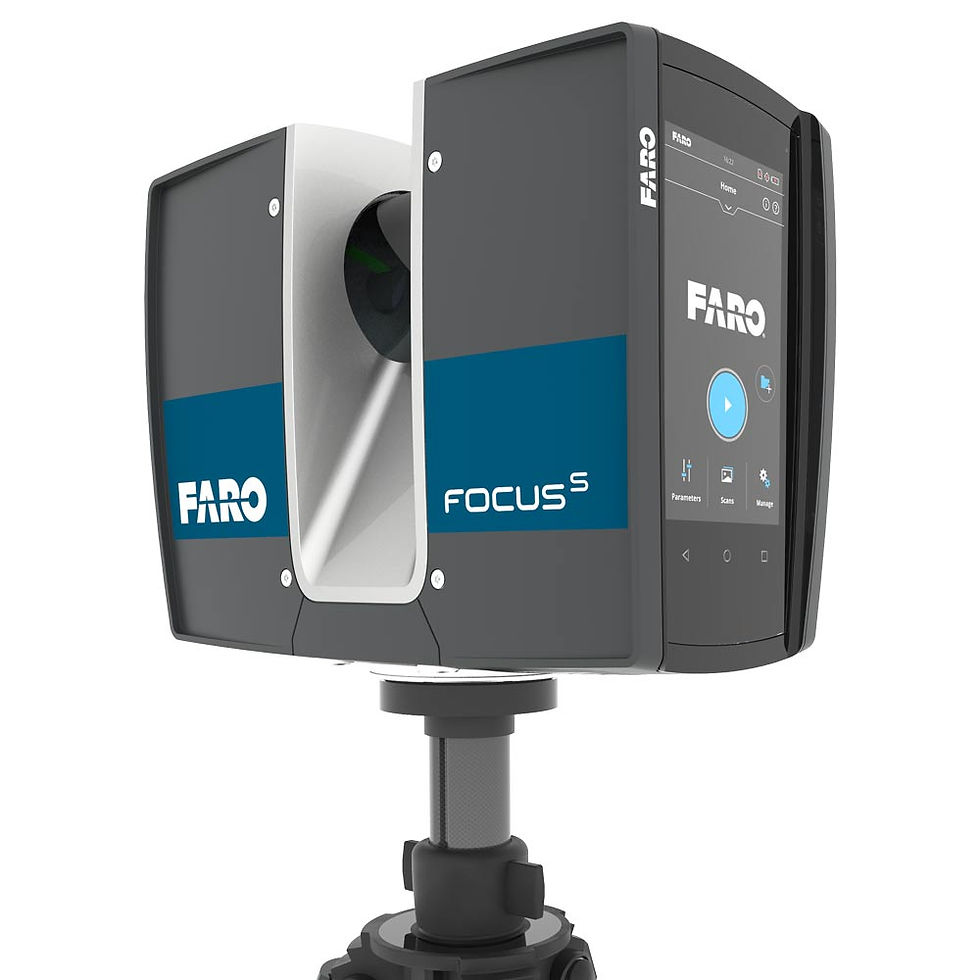

The Faro Focus 350 is the very best tool on the market for any site surveys. Fast and accurate with long range of 350m with up to 1mm precision.



Using Autodesk Revit BIM software we convert scan data into accurate 3D CAD models.

Typical work includes buildings, houses, commercial, factories, bridges, tunnels steel, concrete, architectural structures, artefacts, heavy engineering,

3d Scan Point Cloud Meshed Data to Parametric 3D CAD Native SolidWorks BMS Design Ltd.JPG

BMS specialise in converting 3D laser scan data into 3D CAD models.



​3D scanning data capture is relatively easy however converting 3D scan data (AKA point cloud data) into usable CAD data is no so easy.



We specialise in converting scan data into parametric 3D CAD models.

We can output into virtually any file format including native SolidWorks (retaining the full design tree), Catia, Revit, Step, Iges, dwg.



For example, we provide pipeline maintenance and repair contractors with overnight emergency scan data processing services. Engineers scan pipeline parts and or areas in field with their own Laser Hand Held Scanners and then send their scan data (as .stl files) directly to us for processing.

We also supply many other leading 3D scanning service providers with their data processing needs.

Reverse Engineering
SCAN to CAD (Scan Data Processing)

We are happy to talk through your requirements by telephone on 01565 325005 or get in touch with details of your project to request an estimate or quote.

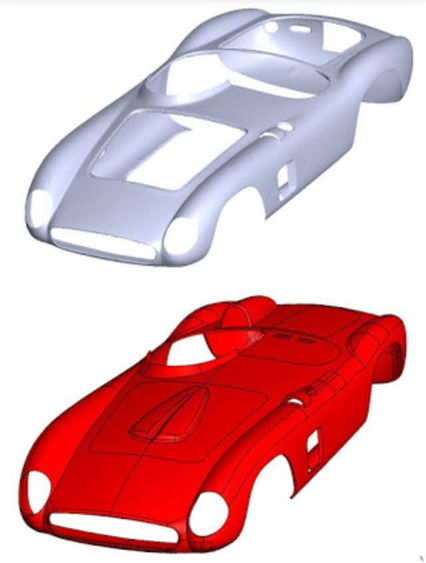

Classic Ferrari Testa Rossa 250 1976 Car Body CAD Model from 3D Scan / Reverse Engineered
