Services

BMS Design Ltd is not sector specific, we design and manufacture for everyone. We use our breadth of knowledge across all our customers’ projects to provide the best service possible 24 hours a day. Our experience has tough us our goal which is to ensure we serve you as quickly and efficiently as possible while maintaining excellent standards.
“We are passionate about detail engineering and exceeding expectations”

Engineering

Design and Drafting Contractors

We convert; rough hand drawings, blue prints & 2D drawings (including AutoCad) to 3D CAD models & produce outstanding fully detailed working drawings fit for manufacture to send straight to our, or your, CAD CAM systems for manufacture saving the valuable time and money. We offer on site or remote services, we use the latest on line project management software to ensure everyone is fully up to speed 24 hours a day.

Reverse Engineering

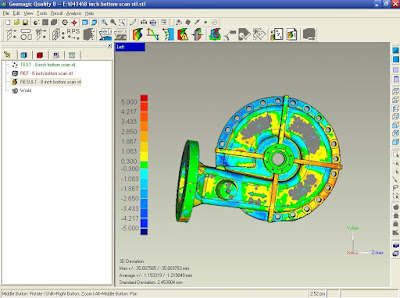

You may need to measure something very accurately or it may be a complex shape. We utilise the very latest technology, CMM, FARO and 3D scanning tools to produce perfect 3d models and class A surfaces for tooling. Components can then be sent for 3D printing or stereolithography.

Petrochemical Oil & Gas Design

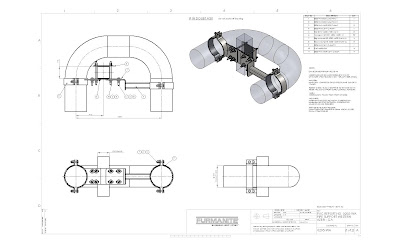

An example of some of our current work is the design and manufacture of pipe clamp supports for the petrochemical industry. Our clients present sketches of the problematic scenarios, our engineers 3D model the scenarios which then enables optimisation of the clamp design. Once the design is signed off, assembly and parts drawings are created, checked and sent back the client for production.

Product Design & Styling

Styling can often make or break a product but simplicity is essential. We believe that our previous work speaks for itself. Our specialist in house artists will develop beautiful concepts for you to choose from.

Prototyping and Tooling

Our in depth expertise in fast prototyping methods and computer aided design and machining mean that production moulds and formers can be realised in an efficient and cost effective fashion – with minimum need to adjust or rework the resultant tools.

Automotive Design Engineers & Project Management

The core of our experience is in the automotive sector and we are fully capable of producing bespoke vehicles for, race, rally, road (and electric) and off road. From formula ford to British GT and World Rally Car design and manufacture. We are currently working on an electric sports car for the road. We develop full vehicle projects for niche small volume OEMs & sub system components for chassis, suspension and fuel systems. We have a lot of experience working with TVR Sports Cars, Ginetta, GM and Lotus, from concept and styling to chassis and suspension geometry design and fabrication to road testing and vehicle dynamics. Partners include Pirelli Tyres, Goodyear, Multimatic, Mira, MSA and the FIA

SolidWorks Training

With over 10 years practical real life experience using SolidWorks, on a daily basis, our one day starter course will seriously speed up your design time. Having learnt the hard way we know there are many different ways of performing the same tasks but some are far quicker. Automating commands repeating or copying similar parts, drawings, assemblies and sheet metal components will save your designers hours of time. Our fees our half what you will find it anywhere else because our overheads are kept low.

Fabrications

We manufacture all types of fabrications from one off artworks to structural frames, shelters, vehicle chassis, mobility chassis, bespoke fabrications, emergency stair cases, reinforcing systems, barriers, platforms, ramp, jigs and fixtures, structures, steel stair cases, gates, fences, balustrades, bollards, street furniture, fixtures, fitting, frames and boxes…
Whatever the material, finish or quantities be sure we can do it for you.

Machined Components

Our experience in the Automotive sector has helped us design for aesthetics, weight and cost. From fixtures and fittings to valves, wheels, uprights, castings, casings, suspension, steering, NVH and chassis components.

Software Feasibility & Installation

We help clients find the right CAD software for their company and offer CAD training. A quick feasibility study to determine your product needs verses cost and ongoing efficiency. We minimise down time and convert old drawings into new formats for example AutoCad to SolidWorks supply the most cost effective hardware to run the software. With over 10 years experience using CAD software in various industries we will provide a non bias view that best suits your business today and for the future.

Turnkey Projects

From a small consumer item to complete production ready products – from design brief, preproduction prototyping through to realisation production planning, tooling and manufacture of the finished product.

Engineering Design Tools

SolidWorks modelling contractors

SolidWorks draughting (drafting) contractor

PRO E
Catia
AutoCad
Alias
Ansys
FEA
CFD
Stress analysis
Live online project management, SCRUM, agile
Photoshop

Parts Production and Manufacture

We manufacture for all industry sectors from composite parts for motorcycle manufactures to sheet metal fabrications, and street furniture for the civil industries. BMS Design Ltd are fully focused on their customer needs; especially in terms of service, lead time, quality and cost.

Manufacturing Capabilities

Fabrications: Shop fitting equipment, display stands, tables, structural steel, jigs, fixtures, construction decoration, street furniture, steel staircases, fences, decoration, art work manufacture
CNC Lathe & milling machines 2, 3, 4, 5 axis, CAM
Laser sheet metal cutting, high speed
Laser tube cutting, 4000 ppm capacity
CNC sheet metal bending, pressing and folding
Welding, TIG, MIG, Friction
CNC tube manipulation, pipe, bending
Repairs
Materials & component testing facilities
Composites, carbon, wet Lay, pre-preg, autoclave, vac bag
Glass reinforced plastic, GRP, fiberglass
Moulds, masters & pattern manufacture

“Low and high volume quantities, we will do our best to beat your quotes.”
Engineering Consultancy

Engineering design software feasibility

Engineering management
Manufacturing management
Project management
Design management
Product management
Automotive surveying
Motorsports surveying and loss adjusting (World Wide)
Marine surveying and loss adjusting (World Wide)
ISO 9000
BSI

Professional Vehicle Dynamics and Driver Training

We also provide drivers who can test and develop a whole range of vehicle dynamics. Please contact www.boardmanmotorsport.com for details.
